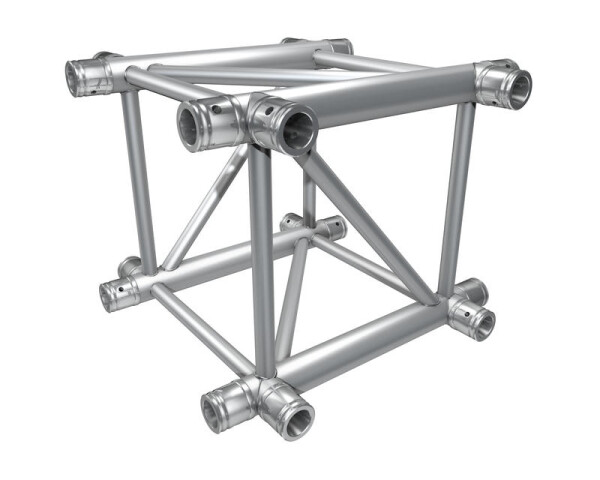

Artikelinfos im DetailThe F44 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 40cm. The system off ers an outstanding load capacity and low deflection, ideal for complex constructions with high loads, along with stage systems and permanent installations. A maximum span of up to 20 meters can be created with this system.
 .
The F44 truss is built with 50 x 2mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Dati tecnici
General
- Colour Aluminum
- TÜV certificate No
- Material Al EN AW-6082 T6
Technical Data
- Number of points 4-point
- Edge dimension 40 cm
- System F44
- Type corner
main pipe
- Diameter main pipe 50 mm
- Wall thickness main pipe 2 mm
Brace
- Diameter Brace 25 mm
- Wall thickness Brace 3 mm
Hardware
- Dimensions (L/W/H) 500 x 500 x 400 mm
- Weight 10,80 kg
