Global Truss

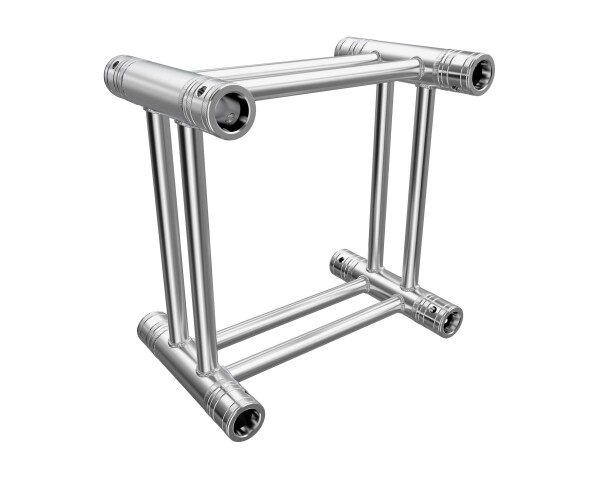

F44 25cm

numero articolo: BKF44025 EAN: 4042659010968 categoria: F44 Tralicci

Length: 25 cm
Pipe diameter: 50 mm
Wall thickness: 2 mm
Conical connectors included

disponibile

data di consegna: 6 - 7 giorni lavorativi

MSRP: ~~232.00 CHF~~

192.00 CHF

17%

incl. 8,1% USt. ,

Pagare in modo sicuro tramite:

The F44 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 40cm. The system off ers an outstanding load capacity and low deflection, ideal for complex constructions with high loads, along with stage systems and permanent installations. A maximum span of up to 20 meters can be created with this system.

&nbsp.

The F44 truss is built with 50 x 2mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

General

Colour Aluminum
TÜV certificate No
Material Al EN AW-6082 T6

Technical Data

Number of points 4-point
Edge dimension 40 cm
System F44
Type straight
Truss length 25 cm

main pipe

Diameter main pipe 50 mm
Wall thickness main pipe 2 mm

Brace

Diameter Brace 25 mm
Wall thickness Brace 3 mm

Hardware

Dimensions (L/W/H) 250 x 400 x 400 mm
Weight 5,50 kg
