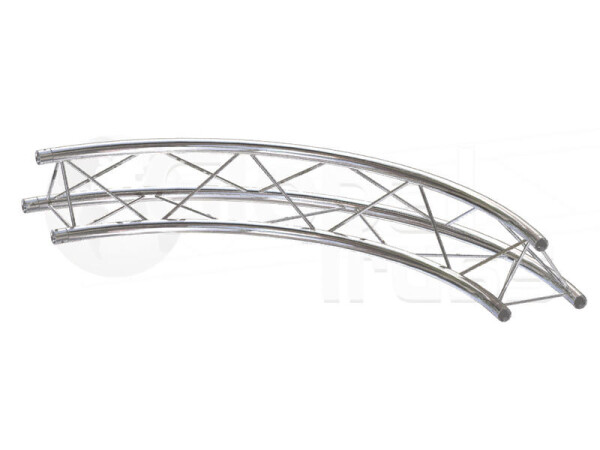

F23 circle piece for Ø 9,0m 60°, 431.00 CHF

The F23 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 22cm. The series is perfect for small constructions, banner frames or permanent installations for lighting and sound along with use in shops. A maximum span of up to 10 meters can be used.

&nbsp.

The F23 truss is built with 35 x 1.6mm main tubes and 8mm diagonal braces of aluminium. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

General

Colour Aluminum
TÜV certificate No
Material Al EN AW-6061 T6

Technical Data

Number of points 3-point
Edge dimension 22 cm
System F23
Type circle

Circle

Diameter circle 9000 mm
Excerpt 60°

main pipe

Diameter main pipe 35 mm
Wall thickness main pipe 1,60 mm

Brace

Diameter Brace 8 mm

Hardware

Weight 12,70 kg
