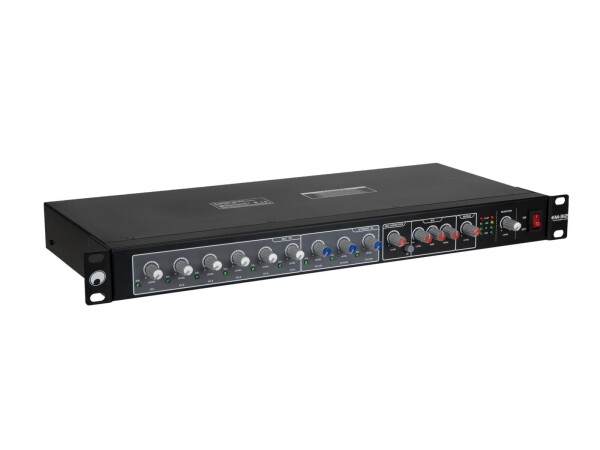

Artikelinfos im Detail The EM-312 is a slim rack-mounted 12-channel mixer with 6 mic/line combo inputs and 6 additional line inputs. It has XLR outputs, a 6.3 mm mono output, a stereo RCA recording output, and a 6.3 mm monitoring output for the mic section. The EM-312 offers separate volume controls for all inputs in addition to volume control for the mono output and a master volume control. It has a 3-band equalizer and an adjustable priority function for microphone announcements through channel 1.
Microphone line mixer, 6 mono channels + 3 stereo channels
- 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be switched on for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced stereo XLR outputs and RCA outputs
- Adjustable monitor output
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo LED level meter and 3-band equalizer
- Additional screw terminals for 24 V DC power input
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; Clubs/dancing school
Package contents
- 1 x device, 1 x power cord, 4 x foot, 1 x user manual
| Power supply: | 230 V AC, 50 Hz Or 24 V |
| Power consumption: | 12 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Mains input via screw terminal |
| Device fuse: | 5 x 20 mm, T 0,5 A Fuse replaceable |
| Frequency range: | 20 - 22000 Hz |
| S/N ratio: | >103 dB |
| THD: | <0,03 % at 1 kHz |
| Phantom power: | 21 V DC or 18 V DC |
| Impedance: | Input: mic/line 1,4 kOhm Input: line 10 kOhm Output: 120 Ohm |
| Control elements: | Power switch, Input sensitivity switch, tone control, level control per channel, Master control |
| Status LED: | Power, signal, master level meter, clip |
| Connections: | Input: mic/line via 6 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 3 x stereo RCA Output: master via 2 x 3-pin XLR Output: mono via 1 x 6.3 mm jack socket (mono) mounting version Output: rec. via 1 x stereo RCA |
| Channels: | Input chanel: 6 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz, Input sensitivity switch Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz Master output: 1 x stereo via XLR, channel control via Rotary dial Master output: 1 x mono via Jack, channel control via Rotary dial |
| Max. level: | Input: Microphone -19 dBu Input: line +21 dBu Output: +21 dBu |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 23 cm Height: 4,45 cm |
| Weight: | 3,04 kg |
Merkmale
Dati tecnici
| Power supply: | 230 V AC, 50 Hz Or 24 V DC |
| Power consumption: | 12 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Mains input via screw terminal |
| Frequency range: | 20 - 22000 Hz |
| S/N ratio: | >103 dB |
| THD: | <0,03 % at 1 kHz |
| Phantom power: | 18 V DC or 21 V DC |
| Impedance: | Input: mic/line 1,4 kOhm Input: line 10 kOhm Output: 120 Ohm |
| Control elements: | Power switch |
| Status LED: | Power, signal, master level meter, clip |
| Connections: | Input: mic/line via 6 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 3 x stereo RCA Output: master via 2 x 3-pin XLR Output: mono via 1 x 6.3 mm jack socket (mono) mounting version Output: rec. via 1 x stereo RCA |
| Channels: | Input chanel: 6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz Master output: 1 x stereo via XLR, channel control via Rotary dial Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Max. level: | Input: Microphone -19 dBu Input: line +21 dBu Output: +21 dBu |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 23 cm Height: 4,45 cm |
| Weight: | 3,04 kg |
