Alle Variationen zu diesem Artikeldescrizione

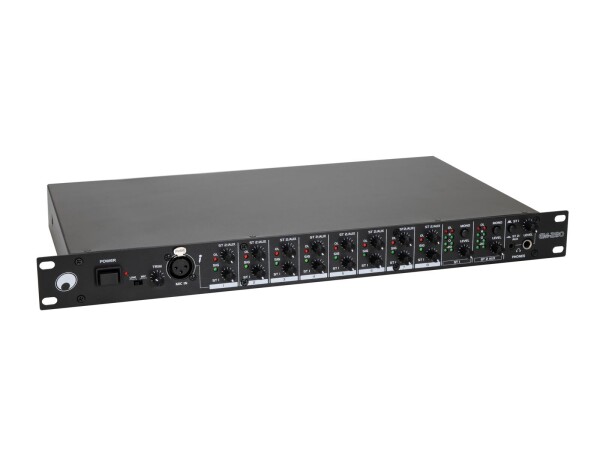

Artikelinfos im Detail8-channel stereo mixer with 2 adjustable zone outputs, 19"
- 1 additional XLR microphone input in channel 1
- Nominal input level switchable between +4dBu and -10 dBV
- Signal and overload indicators in each channel
- 4-digit stereo level meter for each bus output
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; Clubs/dancing school
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x rCA cable
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >92 dB line >65 dB Microphone |
| THD: | Line <0,9 % at 1 kHz |
| Gain: | Mic/line 18 dB |
| Housing color: | Black |
| Control elements: | Groundlift selector |
| Status LED: | Power, master level meter, signal, clip |
| Connections: | Input: line via 8 x 6.3-mm-jack (bal.) Input: Microphone via 1 x 3-pin XLR Output: master via 2 x 6.3-mm-jack (bal.) Output: AUX via 1 x 6.3-mm-jack (bal.) Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input chanel: 1 x mono + stereo with Mic-line switch via XLR or jack, channel control via Rotary dial, pre-post switch, gain control Input chanel: 7 x stereo via Jack, channel control via Rotary dial, pre-post switch Master bus input: 2 x stereo via Jack, Routing master bus switch Master output: 2 x mono + stereo via XLR or RCA, channel control via Rotary dial, stereo/mono switch Master bus output: 1 x stereo via Jack Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Routing master bus switch |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 28,0 cm Height: 4,4 cm |
| Weight: | 3,06 kg |
Dati tecnici
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >92 dB line >65 dB Microphone |
| THD: | Line <0,9 % at 1 kHz |
| Gain: | Mic/line 18 dB |
| Housing color: | Black |
| Connections: | Input: line via 8 x 6.3-mm-jack (bal.) Input: Microphone via 1 x 3-pin XLR Output: master via 2 x 6.3-mm-jack (bal.) Output: AUX via 1 x 6.3-mm-jack (bal.) |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 28,0 cm Height: 4,4 cm |
| Weight: | 3,00 kg |
