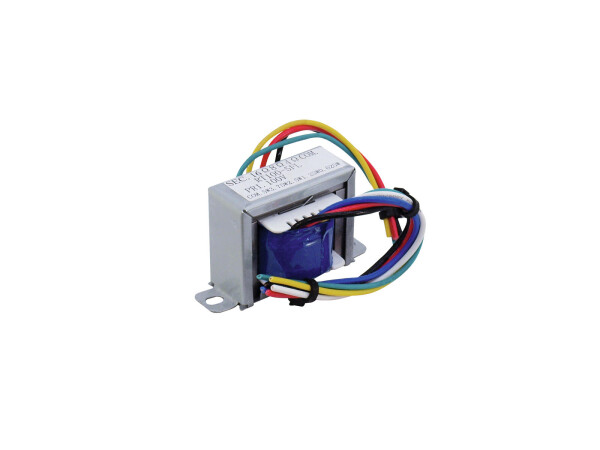

ELA-T20OD Transformer 20W IP65
40.50 CHF *
disponibile
descrizione
Dati tecnici
Variazioni
Alle Variationen zu diesem Artikeldescrizione
Artikelinfos im Detail100 V audio transformer
- For amplifiers or speakers without built-in 100 V audio transformer
- Converts low-impedance signals into 100 V signals
- 5 power taps
Package contents
- 1 x device, 1 x user manual
| Power: | Rated: 5W RMS |
| Frequency range: | 50 - 15000 Hz |
| Impedance: | Public address systems 100V; 4 ohms; 8 ohms; 16 ohms |
| Power tapping: | 0,625W; 1,25W; 2,5W; 3,75W; 5W RMS via no connector/cable only switchable |
| Borehole distance: | 5,3 cm |
| Dimensions: | Width: 6 cm Depth: 3,5 cm Height: 3,5 cm |
| Weight: | 170 g |
Dati tecnici
| Rated power: | 5 W RMS |
| Frequency range: | 50 - 15000 Hz |
| Impedance: | Public address systems 100V; 4 ohms; 8 ohms; 16 ohms |
| Power tapping: | 0,625W; 1,25W; 2,5W; 3,75W; 5W RMS via no connector/cable only switchable |
| Dimensions: | Width: 6 cm Depth: 3,5 cm Height: 3,5 cm |
| Weight: | 170 g |
