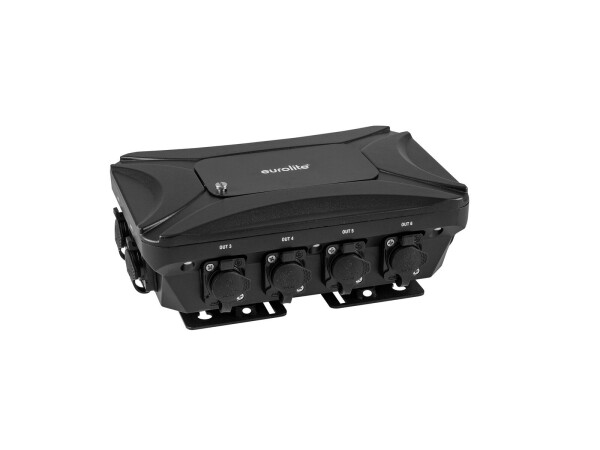

Artikelinfos im DetailWeather-proof splitter with 8 galvanically isolated outputs, 3-pin IP XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs galvanically isolated
- Suitable for outdoor use IP65
- With Holder for wall mounting
- Control via DMX
- With pressure compensation membrane
- Application possibility: Wall mounting; suspended; standing
- For application areas such as: Installation; mobile use; Stage; architecture
- Silent operation
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 4 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable length: | 1,4 m |
| Fuse: | T 1 A Fuse fix on board |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP 8 x 3-pin XLR (F) mounting version IP Separate (galvanic) |
| Control: | DMX |
| Attachment system: | M10 thread Holder for wall mounting |
| Status LED: | Signal, DMX |
| Material: | Aluminum casting |
| Color: | Black |
| Dimensions: | Length: 22,5 cm Width: 15,0 cm Height: 8,5 cm |
| Weight: | 2,13 kg |
| Noise classification: | Class 0 (no noise at all) |
Dati tecnici
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 4 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Fuse: | T 1 A fuse fix on board |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP 8 x 3-pin XLR (F) mounting version IP separate (galvanic) |
| Control: | DMX |
| Attachment system: | M10 thread Holder for wall mounting |
| Status LED: | Power, DMX |
| Material: | Aluminum casting |
| Color: | Black |
| Dimensions: | Length: 22,5 cm Width: 15,0 cm Height: 8,5 cm |
| Weight: | 2,13 kg |
| Noise classification: | Class 0 (no noise at all) |
