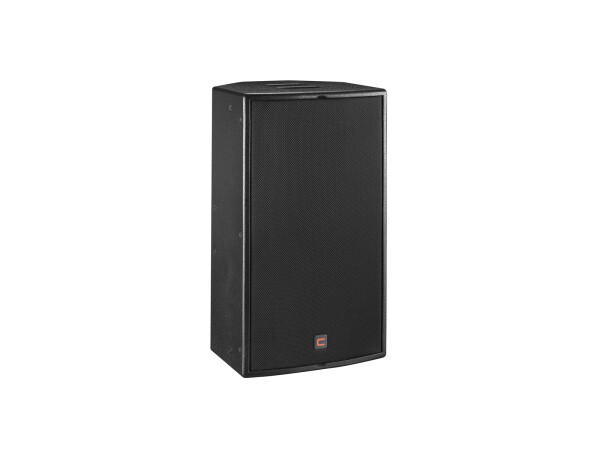

Artikelinfos im DetailPerfectly built speaker
- Horn 90 degree rotatable for horizontal or vertical use
- With rigging points
- CELTO ACOUSTIQUE driver
- Built with NEUTRIK connector
- For application areas such as: Concerts/FoH's; Clubs/dancing school; Installation; mobile use; Stage; theater; sports centres/gyms; multi-purpose hall
- Dual flange
Package contents
- 1 x top
| Power: | Rated: 600W AES Program: 1200W Peak: 2400W |
| Frequency range: | 50 - 22000 Hz |
| Sensitivity: | 97 dB |
| Max. SPL: | 131 dB |
| Dispersion angle: | 80° x 50° rotatable horn |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/10°) |
| Flying points: | 17 x M8 thread |
| Control elements: | Mode switch (1+1- / 2+2-) |
| Connections: | 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | 1500 Hz |
| Speaker: | 1 x woofer 12" Basket material: aluminum Voice coil lows 3" 1 x Annular compression driver 1" Diaphragmmaterial: PEEK (H.T. polymer) Voice coil annular 1,75" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver Built with NEUTRIK connector |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 35,6 cm Depth: 34,5 cm Height: 62,0 cm |
| Weight: | 23,45 kg |
Dati tecnici
| Power: | Peak: 2400W Program: 1200W Rated: 600W AES |
| Frequency range: | 50 - 22000 Hz |
| Sensitivity: | 97 dB |
| Max. SPL: | 131 dB |
| Dispersion angle: | 80° x 50° rotatable horn |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/10°) |
| Flying points: | 17 x M8 thread |
| Control elements: | Mode switch (1+1- / 2+2-) |
| Connections: | 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | Passive 1500 Hz |
| Speaker: | 1 x woofer 12" Basket material: aluminum Voice coil lows 3" 1 x annular compression driver 1" Voice coil annular 1,75" Diaphragmmaterial: PEEK (H.T. polymer) |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver Built with NEUTRIK connector |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 35,6 cm Depth: 34,5 cm Height: 62,0 cm |
| Weight: | 23,45 kg |
