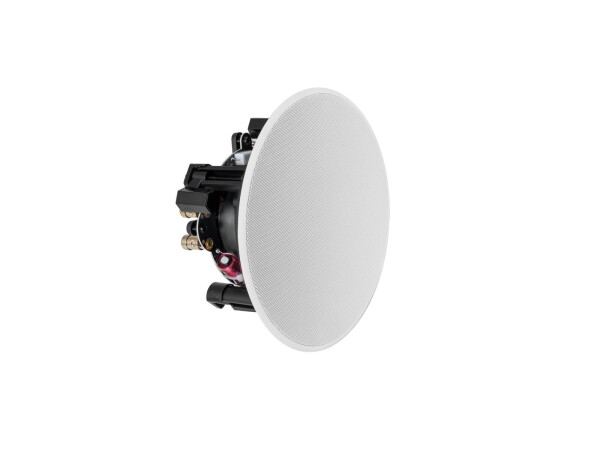

CST-508 2-Way Ceiling Speaker

The models of the CST series are frameless in-ceiling speakers with a particularly discreet appearance for installation in hotels, restaurants, bars, foyers, training and conference rooms or shopping centers. The 2-way coaxial systems have a frequency response of up to 20 kHz, balanced sound and excellent speech intelligibility. The tweeter is protected against overload by a PTC and can be tilted 30 degrees to adapt to local conditions, as well as freely rotated by 360°. Secure mounting clamps allow for fast and easy attachment. The front grille is exchangeable.

2-way flush-mount coaxial speaker, LF: 5,3" HF: 0,75", 8 ohms, 30 W RMS, 9,5 cmØ 17,2 cm

• Excellent sound playback
• With passive 2-way crossover, PTC tweeter protection
• Swivel tweeter
• Level matching switch -3 dB/0 dB/+3 dB
• For speech and background music in indoor PA systems
• Scratchproof and shockproof
• For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms

Package contents

• 1 x speaker, 1 x user manual

Power:	Program: 60W Rated: 30W RMS
Frequency range:	50 - 20000 Hz
Sensitivity:	86 dB (1W/1m)
Max. SPL:	104 dB
Dispersion angle:	165° Omnidirectional
Impedance:	8 ohms
Speaker:	1 x woofer 5,3" Tweeter 0,75"
Type of speaker:	Flush-mount speaker
Material:	ABS Acrylonitrile butadiene styrene
Color:	White, scratchproof and shockproof
Mounting dimensions:	9,5 cm Ø 17,2 cm
Dimensions:	Height: 9,6 cm Diameter: Ø 21,1 cm
Weight:	1,24 kg
