Board 10-ST with 10x Safety-Plug
MSRP 105.00 CHF
88.00 CHF *
disponibile
descrizione
Dati tecnici
Articoli alternativi
I Clienti hanno inoltre comprato i seguenti prodotti
Variazioni
Alle Variationen zu diesem Artikeldescrizione

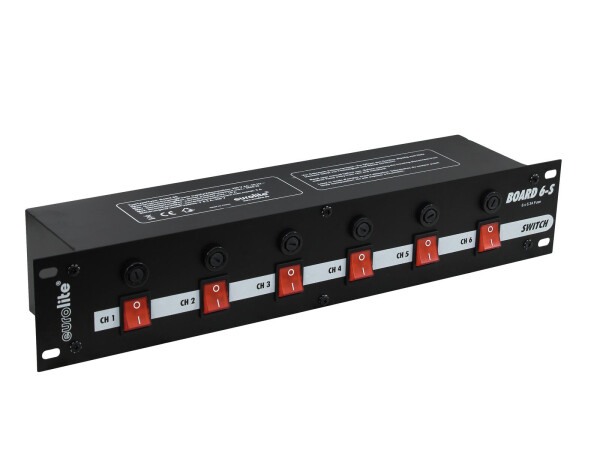

Artikelinfos im Detail6-fold switching panel for separate switching of 6 safety sockets
- Fully cabled housing with 6 safety sockets
- 6 switches
- Control via on/off switch on device
- With profile rails suitable for 19" units
Package contents
- 1 x device, 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 3680 W |
| Output power: | Max. 1150 W per channal |
| Output current: | Max. 5 A per channal |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,8 m |
| Power output: | 6 x Safety contact (F), hinged lid mounting version fused |
| Fuse: | 5 x 20 mm, F 6,3 A Fuse replaceable |
| Control: | On/off switch on device |
| Control channels: | 6 |
| Diameter mounting holes: | 4 x Ø5mm |
| Material: | Metal |
| Color: | Black, matte |
| Front panel width: | 19" |
| Mounting height: | Approx. 9 cm (2 U) |
| Mounting depth: | 120 mm |
| Dimensions: | Width: 48,3 cm Depth: 12,5 cm Height: 8,9 cm |
| Weight: | 2,00 kg |
Dati tecnici
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 3680 W |
| Output power: | Max. 1150 W per channal |
| Output current: | Max. 5 A per channal |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,8 m |
| Power output: | 6 x Safety contact (F), hinged lid mounting version fused |
| Fuse: | 5 x 20 mm, F 6,3 A Fuse replaceable |
| Control: | On/off switch on device |
| Control channels: | 6 |
| Diameter mounting holes: | 4 x Ø5mm |
| Material: | Metal |
| Color: | Black, matte |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 9 cm (2 U) |
| Mounting depth: | 120 mm |
| Dimensions: | Width: 48,3 cm Depth: 12,5 cm Height: 8,9 cm |
| Weight: | 2,00 kg |
Artikel mieten
valutazioni
Wir freuen uns auf deine BewertungNon ci sono ancora valutazioni.
